Mini L298N DC Motor Driver Module for DC Motors

The Mini L298N DC Motor Driver Module is a powerful and versatile dual H-Bridge motor controller designed to drive two DC motors independently with precise speed and direction control. ⚙️🤖 Based on the reliable L298N driver IC, this compact module is ideal for robotics projects, automation systems, line follower robots, smart vehicles, and DIY motor control applications.

This motor driver supports bidirectional control for each motor, allowing forward, reverse, braking, and speed regulation using PWM signals. It operates with a wide motor voltage range and provides stable performance even under load, making it suitable for medium-power DC motors.

Key Features:

✔ Dual H-Bridge motor driver for 2 DC motors
✔ Forward, reverse, brake, and speed control
✔ Supports PWM speed regulation
✔ Wide operating voltage range
✔ Compact and easy-to-wire design

Specifications:

• Driver IC: L298N

• Motor Supply Voltage: 5V – 35V DC

• Logic Voltage: 5V DC

• Output Current: Up to 2A per channel (peak)

• Control Method: IN1–IN4 logic inputs + ENA/ENB PWM

• Motor Type Supported: DC Motors

• Protection: Over-temperature protection

• Applications: Robotics, automation, motor control

Bullet Points:

Dual DC Motor Control Capability: This Mini L298N motor driver module can independently control two DC motors, enabling precise forward, reverse, braking, and speed control, making it ideal for robotics projects, smart cars, automation systems, and DIY motor-based applications.

Wide Voltage & High Power Handling: Designed to operate with motor supply voltages from 5V to 35V and capable of handling up to 2A peak current per channel, this module is suitable for driving medium-power DC motors efficiently and reliably.

Easy Interface & Microcontroller Friendly: Featuring clearly labeled control and output pins, the Mini L298N driver module is easy to connect with popular development boards, reducing wiring complexity and speeding up project development for beginners and professionals.

Compact Design For Robotics & DIY Use: The small and space-saving design makes this motor driver perfect for mobile robots, line followers, automation kits, and educational projects where reliable motor control and compact hardware are essential.

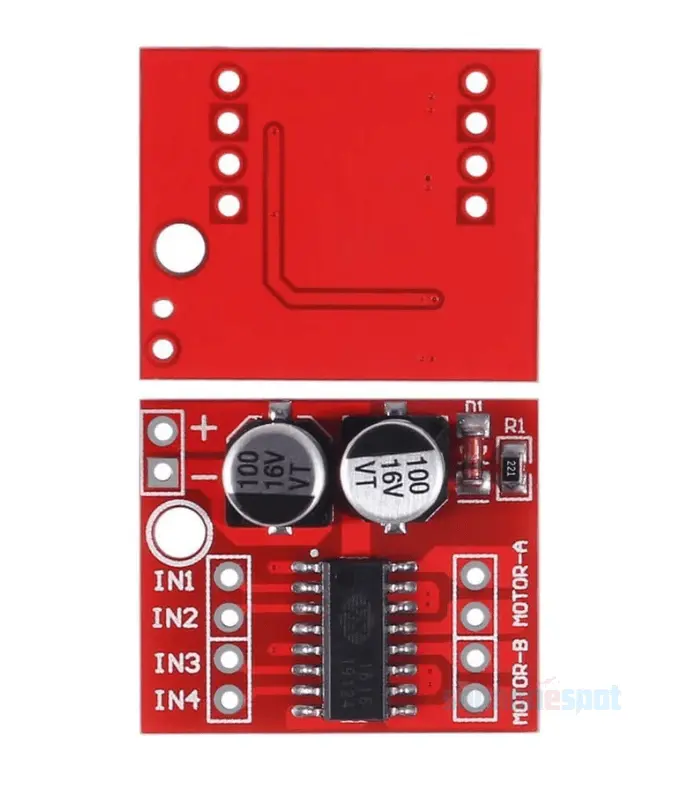

🔌 Mini L298N Motor Driver – Simple Pin Details

⚡ Power Pins

• + (VCC / Motor +): Motor power supply input (usually 6V–12V DC) 🔋

• – (GND): Ground pin (connect to motor supply ground & controller ground)

🎛️ Control Pins (Left Side)

• IN1: Motor-A direction control

• IN2: Motor-A direction control

• IN3: Motor-B direction control

• IN4: Motor-B direction control

👉 Change HIGH / LOW combinations to rotate motors forward or reverse.

🔄 Motor Output Pins (Right Side)

• MOTOR-A (2 Pins): Connect DC Motor A

• MOTOR-B (2 Pins): Connect DC Motor B
