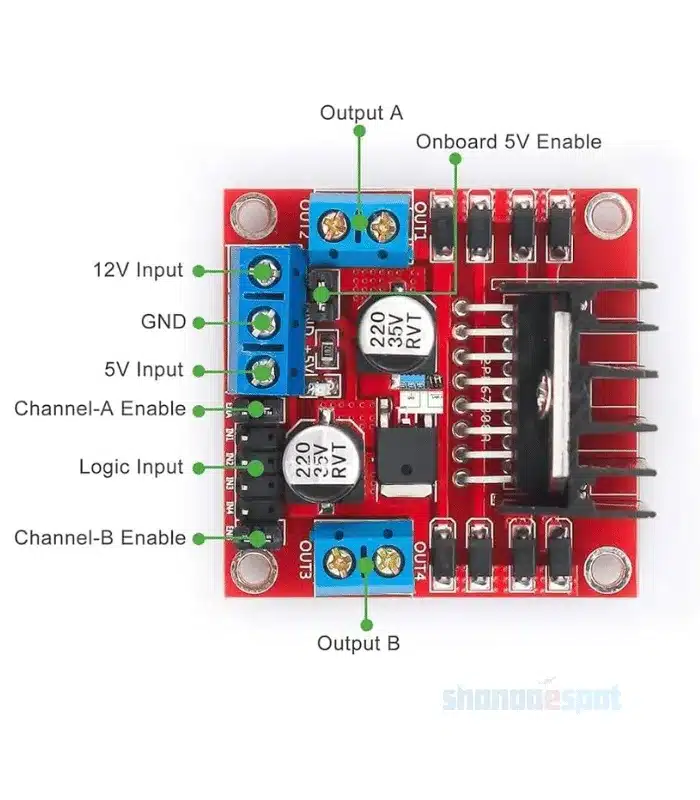

L298N Motor Driver Module – Dual H-Bridge DC Motor Controller

The L298N motor driver module is a powerful and reliable solution for controlling DC motors and stepper motors in robotics and automation projects. Built around the popular L298N dual H-bridge IC, this motor driver board allows precise direction and speed control using standard logic signals from microcontrollers.

Designed for versatility, the L298N motor driver can independently control two DC motors or one two-phase stepper motor. It supports a wide motor supply voltage range, making it suitable for small robots, line followers, DIY vehicles, and industrial prototypes. The onboard 5V regulator simplifies power management, while clearly labeled terminals make wiring quick and error-free.

This motor controller is widely used with Arduino, Raspberry Pi, ESP32, and other development boards. PWM inputs allow smooth speed control, and direction pins provide forward, reverse, and braking functions. The integrated heat sink improves thermal performance during continuous operation.

Whether you are building a robotic car, conveyor system, or automation project, this dual H-bridge motor controller delivers stable performance and excellent control. Its rugged PCB design ensures durability, making it suitable for educational labs, workshops, and real-world applications.

Key Features of L298N Motor Driver Module

• Dual H-bridge design for independent motor control

• Controls two DC motors or one stepper motor

• Supports direction and speed control via PWM

• Onboard 5V regulator for logic supply

• Screw terminals for secure motor connections

• Compatible with popular microcontroller platforms

Technical Specifications – Dual H-Bridge Motor Controller

• Driver IC: L298N

• Motor Supply Voltage: 5V to 35V

• Logic Voltage: 5V

• Output Current: Up to 2A per channel (with heat sink)

• Motor Channels: 2 (DC motors)

• Control Method: PWM and digital direction signals

Applications of L298N Motor Driver

• Robotic cars and mobile robots

• Line follower and obstacle-avoiding robots

• Automation and control systems

• Stepper motor control projects

• Educational and training kits

Why Choose This Motor Driver Module?

• Easy integration with Arduino and ESP boards

• Stable performance for continuous operation

• Reduces development time for motor projects

• Ideal for beginners and professionals

Bullet Points:

• ✅ L298N motor driver for DC and stepper motor control

• ✅ Dual H-bridge design with independent channels

• ✅ Wide motor voltage support up to 35V

• ✅ PWM speed and direction control

• ✅ Ideal for robotics, DIY, and automation projects
