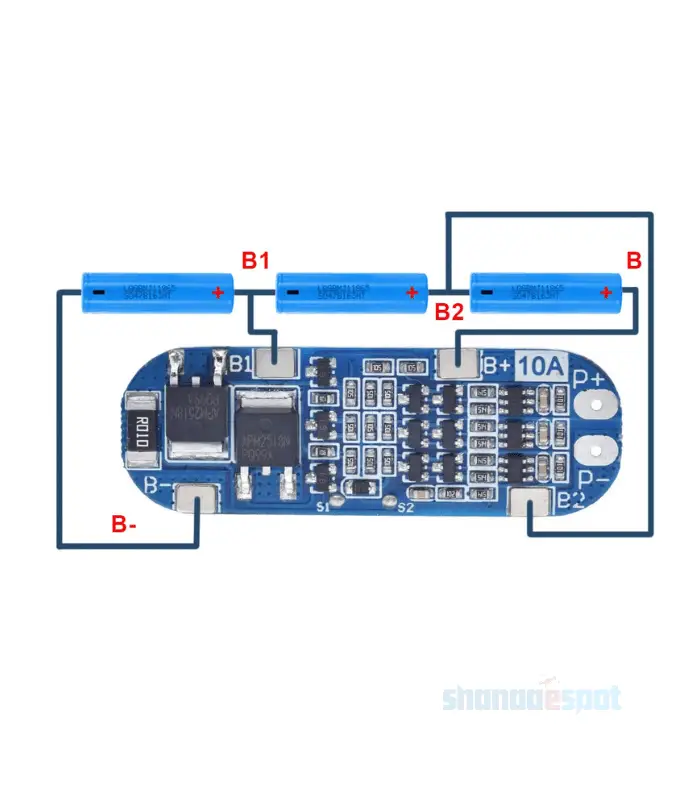

3S 10A Lithium BMS Battery Protection Board for 11.1V / 12V / 12.6V Battery Packs

The 3S 10A Lithium BMS is a compact and reliable battery protection board designed for 3-series (3S) lithium-ion battery packs with nominal voltages of 11.1V and a maximum charge voltage of 12.6V. This board ensures safe battery operation by managing charging, discharging, and current flow while protecting each cell from electrical damage.

This lithium battery protection board supports a continuous discharge current of up to 10A, making it suitable for low-to-medium power applications such as DIY battery packs, backup power units, portable electronics, robotics projects, and small solar energy systems. The BMS continuously monitors battery conditions and automatically disconnects the circuit in unsafe situations.

Designed for easy integration, the board works perfectly with 18650 lithium-ion cells and other compatible lithium batteries. Its lightweight PCB construction allows it to fit neatly inside custom battery enclosures without adding bulk.

Key Features of 3S 10A Lithium BMS

• Designed for 3S lithium-ion battery configurations

• Supports up to 10A continuous discharge current

• Protects batteries from over-charge and over-discharge

• Built-in over-current and short-circuit protection

• Improves battery safety and service life

• Compact PCB design for easy installation

Battery Protection for 3S Lithium Packs

This battery protection board actively monitors individual cell voltages to maintain balance and safety. When abnormal voltage or current is detected, the BMS automatically cuts off charging or discharging to prevent battery damage and safety risks.

Technical Specifications

Electrical Performance Details

• Battery Type: Lithium-ion

• Battery Configuration: 3S

• Nominal Voltage: 11.1V

• Maximum Charge Voltage: 12.6V

• Continuous Discharge Current: 10A

• Charge Current: Up to 5A

• Over-Charge Protection Voltage: 4.25 ± 0.05V per cell

• Over-Discharge Protection Voltage: 2.5 ± 0.1V per cell

Physical Dimensions and Build Quality

• Board Material: FR-4 PCB

• Connection Type: Solder pads

• Operating Temperature: –20°C to 60°C

• Mounting: Fixed wiring installation

Applications of 3S Lithium Battery BMS

• DIY lithium battery packs

• Backup and emergency power systems

• Robotics and automation projects

• Portable electronic devices

• Solar and small energy storage systems

Bullet Points

• Reliable 3S 10A Lithium BMS for safe battery operation

• Designed for 11.1V / 12V / 12.6V lithium battery packs

• Prevents over-charging, over-discharging, and short circuits

• Compact, lightweight, and easy to install

• Ideal for DIY, robotics, and power applications
